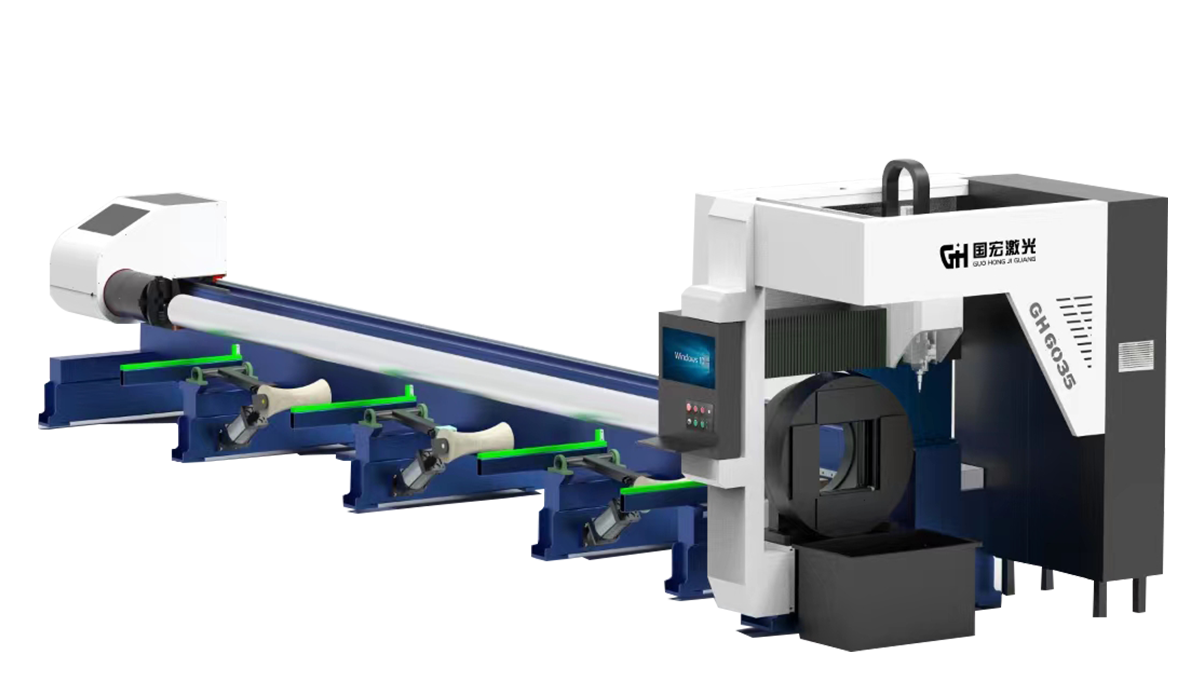

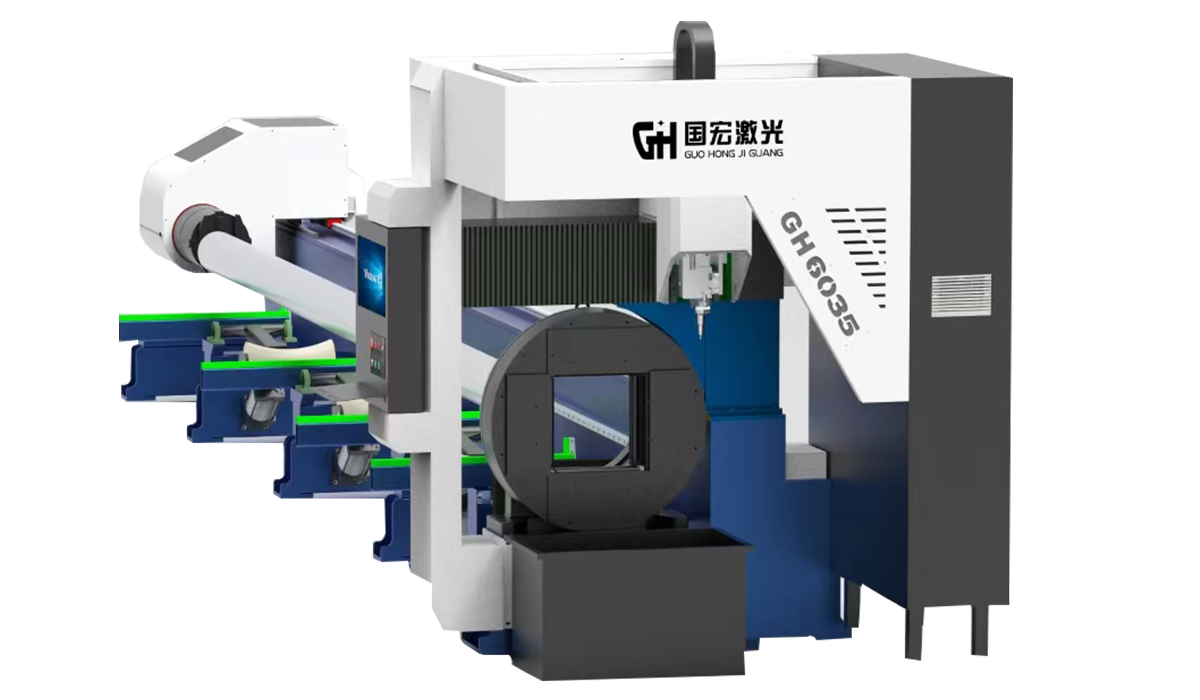

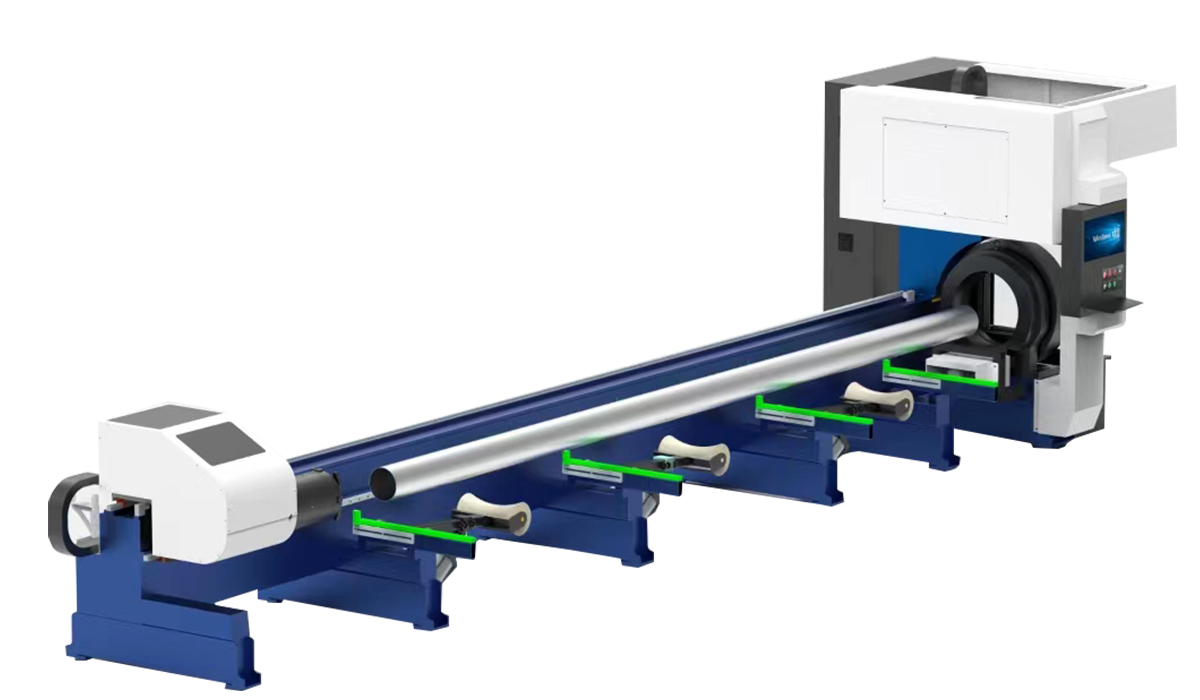

GH-T Series
Side-mounted Tube Laser Cutting Machine

Product Introduction

1.High strength side-mounted mechanical structure machine bed, adopting 600°C stress relief annealing treatment, and the bed has strong structural rigidity, low deformation and low vibration, and maintains extremely high precision

2.Integrating high-speed double pneumatic chuck, 2S clamping, extremely short tailing and other functions, and is committed to providing you with simple, safe and environmentally friendly pipe machine cutting and processing solutions

3.Intelligent control system, CypCut cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions

4.Supporting a variety of types of tube processing, and can process flexible and diverse tube cross-sections to meet the various processing needs of customers

Professional pipe cutting system.png

Professional pipe cutting system


Specifically developed for pipe processing. Supports high-precision and high-efficiency cutting of square tubes, round tubes, racetrack-shaped tubes, oval tubes, angle steel, and channel steel.

Brand new bed structure


The machine tool bed is made of pipes and steel plates welded together, and has the characteristics of stable and reasonable structure, high stability, high strength and high precision.

Brand new bed structure.png

Special steel centering.png

Special steel centering


Supports centering of L steel, channel steel, I-beam and other special steels to improve cutting accuracy

High precision chuck


Full-stroke pneumatic chuck, one-click centering, one-click release and clamping of the jaws, automatic centering, fast and efficient, stable and reliable clamping

High precision chuck.png

Technical Parameters

ModelGH-T120GH-T165GH-T220GH-T300GH-T350GH-T450GH-T520
Chuck Clamping RangeΦ20-Φ120mmΦ20-Φ165mmΦ20-Φ220mmΦ20-Φ300mmΦ20-Φ350mmΦ20-Φ450mmΦ20-Φ520mm
Laser power1000W/1500W/2000W/3000W/4000W/6000W
Chuck Max. Rotational Speed140r/min140r/min140r/min120r/min120r/min120r/min120r/min
Chuck Max. Load80kg120kg200kg600kg600kg1100kg1600kg
Effective Tube Cutting Length3m/6m/9m/12m
Accuracy Of Positioning ±0.1mm
Repeat Repositioning Accuracy ±0.1mm
