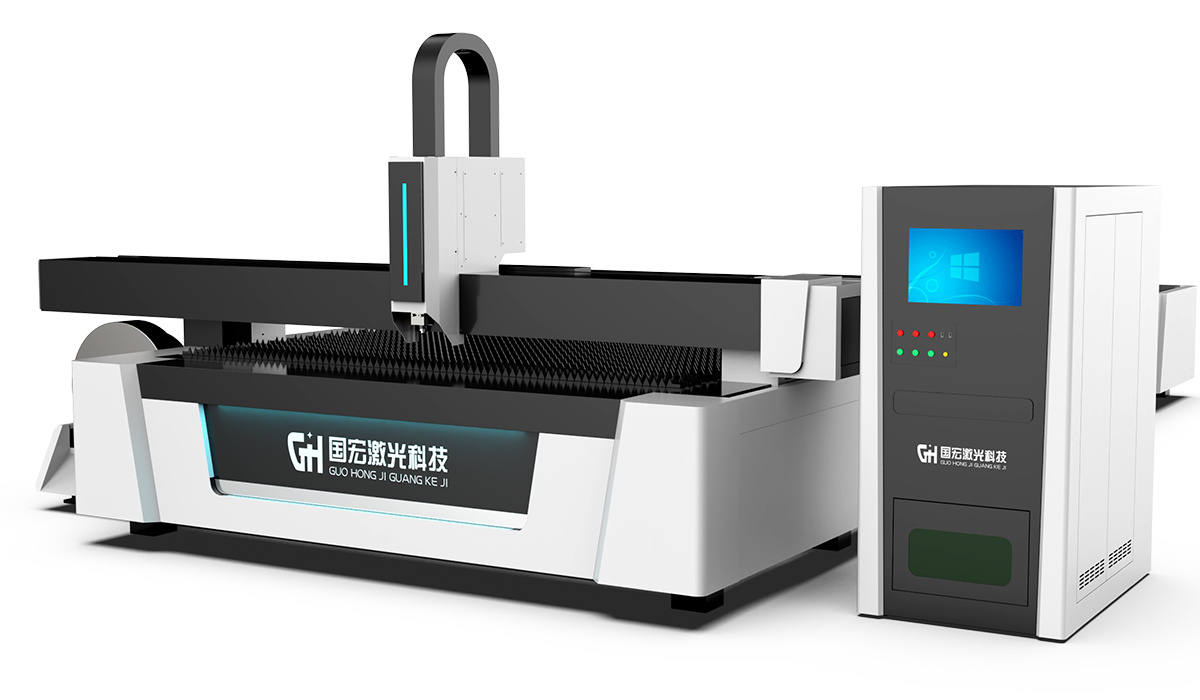

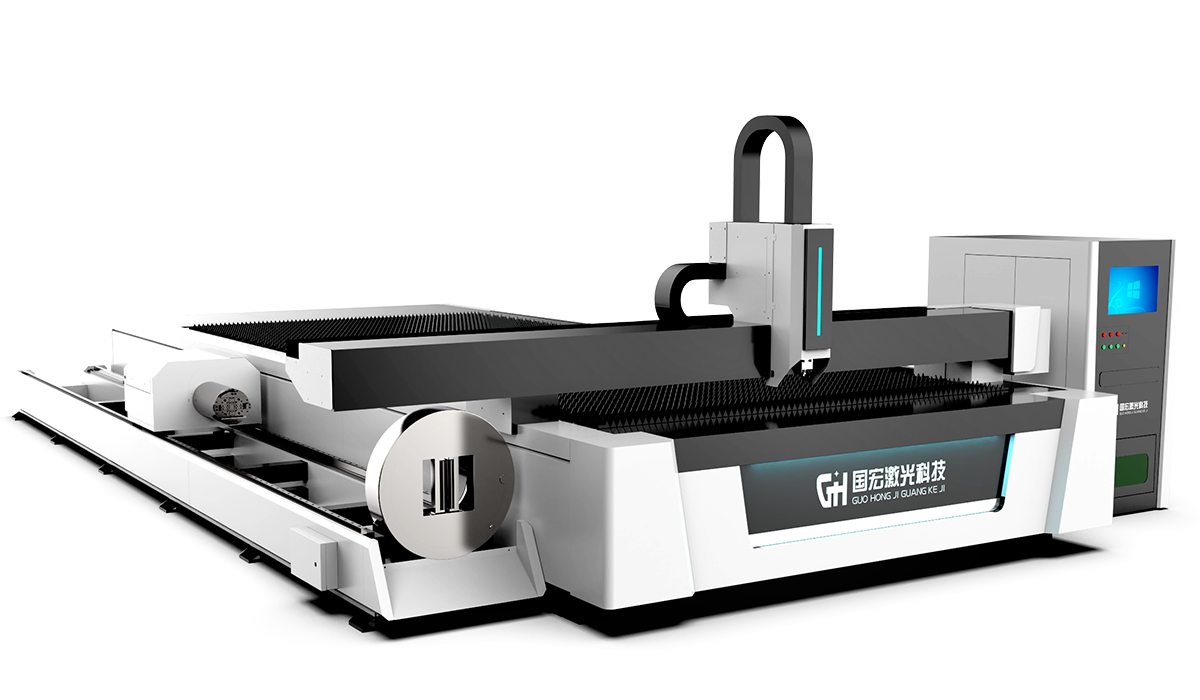

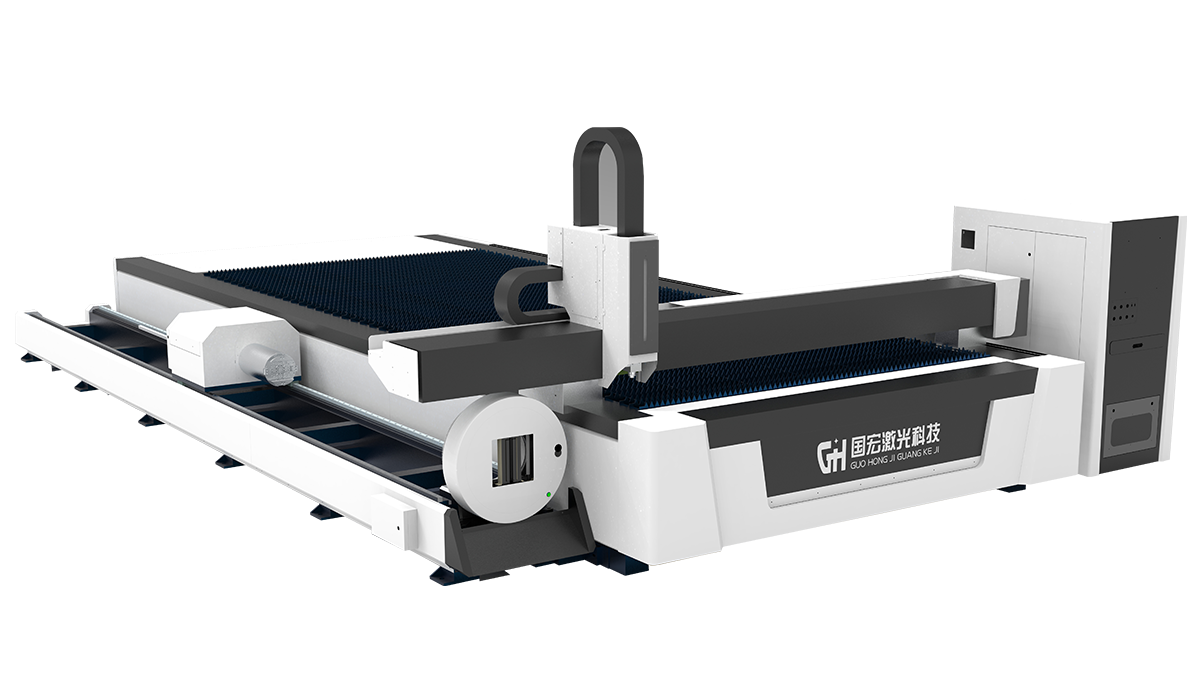

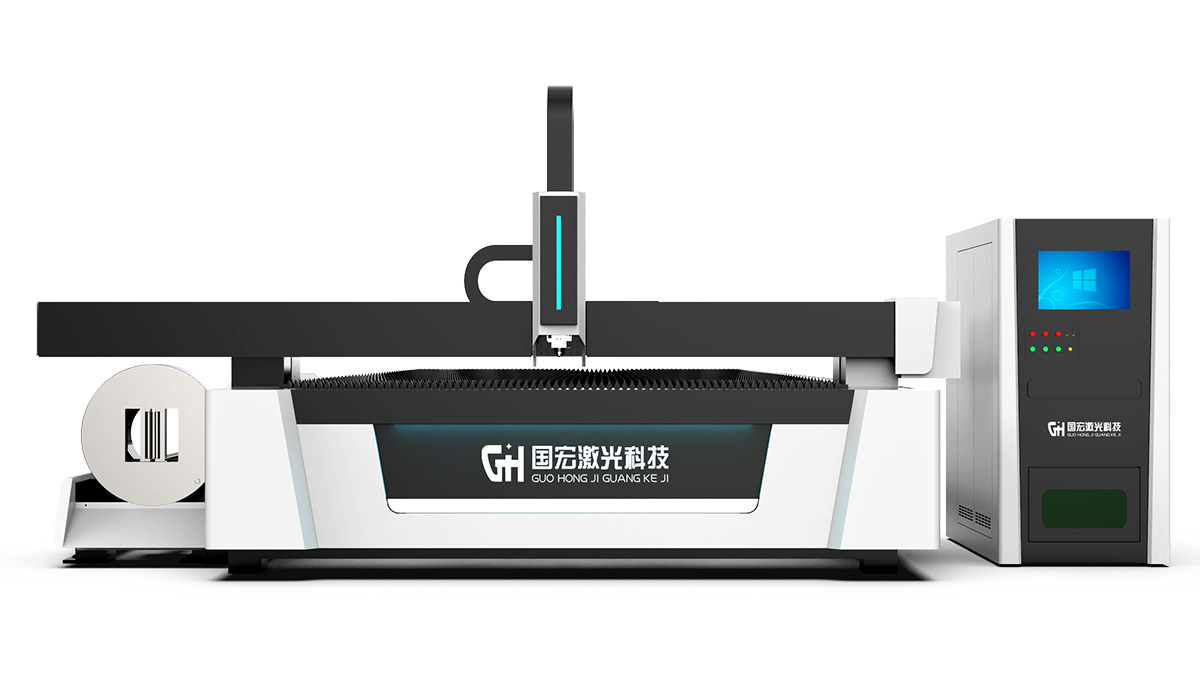

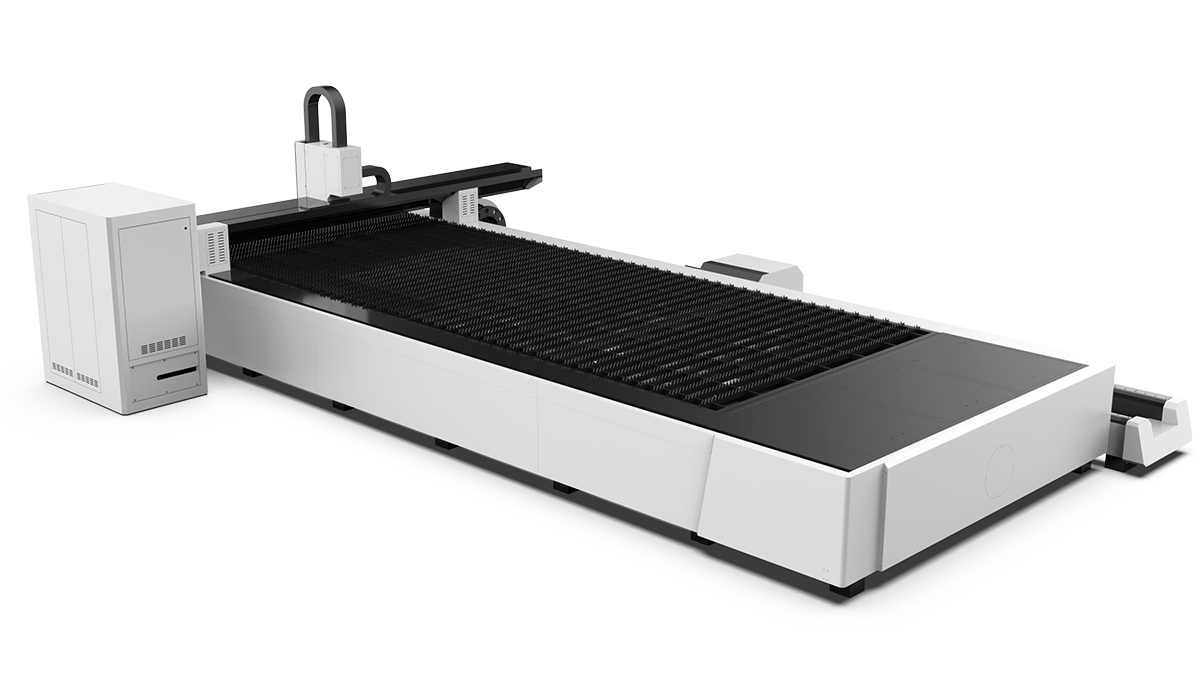

GH-FT Series
Sheet & Tube Laser Cutting Machine

Product Introduction

1.Dual Use and Cost-saving, not only cut metal plates, but also metal pipes. Save cost and space, improve production efficiency

2.High strength steel welded machine bed, applying stress relief annealing technology to eliminate the residual stress of the bed, ensure the long-term stability and non-deformation of the machine bed

3.Aviation grade high strength aluminum beam, light weight, small inertia, rough machining after annealing to eliminate internal stress, and finishing after secondary vibration aging treatment, to ensure the overall strength and stability of the beam

4.Double pneumatic chucks, adopting an pneumatic clamp design on both sides and can modulate the center automatically

5.Intelligent control system, CypCut cutting software is a set of software specially developed for the deep customization of the laser cutting industry, easy to use, rich in functions, suitable for various processing occasions.

Welded Machine Bed

Welded Machine Bed


The bed is welded in sections with Ordinary carbon structural steel. After welding, it is machined after stress relief annealing, and then subjected to vibration aging, so that the stress of welding and machining can be completely eliminated, ensuring excellent rigidity, high strength and high precision of the machine bed; when running at high speed, the vibration is suppressed to low level and the cutting precision is high, which ensures the good stability of the laser cutting machine.

Aluminum Beam


The beam adopts the aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc. In the meantime, it has high flexibility which allow the cutting machine can achieve various shape high speed metal cutting under the condition of satisfying precision.

Aluminum Beam

Laser Cutting Head


Laser Cutting Head

The auto-focus laser cutting head can automatically adjust the focal length, which makes the operation simple, convenient, fast and accurate. Also shorten the piercing time, improve piercing quality, high-speed cutting to save time.

High precision chuck

Full-stroke pneumatic chuck, one-click centering, one-click release and clamping of the jaws, automatic centering, fast and efficient, stable and reliable clamping

High precision chuck

Technical Parameters

ModelGH-FT3015GH-FT4015GH-FT4020GH-FT6015GH-FT6020GH-FT6025
Working Area3050*1530mm4050*1530mm4050*2030mm6050*1530mm6050*2030mm6050*2530mm
Laser power1000W/1500W/2000W/3000W/4000W/6000W
Effective Tube Cutting Length 3m/6m/9m
Effective Round Tube Cutting Diameter Φ20-Φ220mm
Effective Square Tube Cutting Diameter Φ20-Φ220mm
Accuracy Of Positioning ±0.05mm
Repeat Repositioning Accuracy ±0.03mm

Sample Display

Laser Cutting Machine.png
