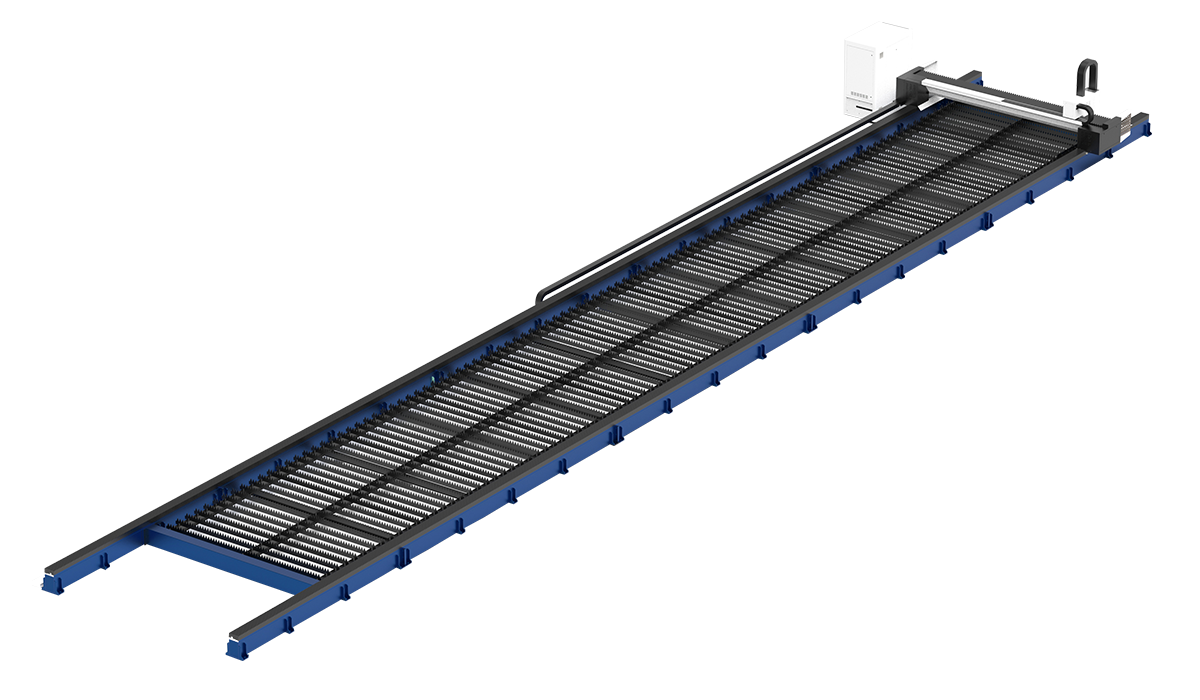

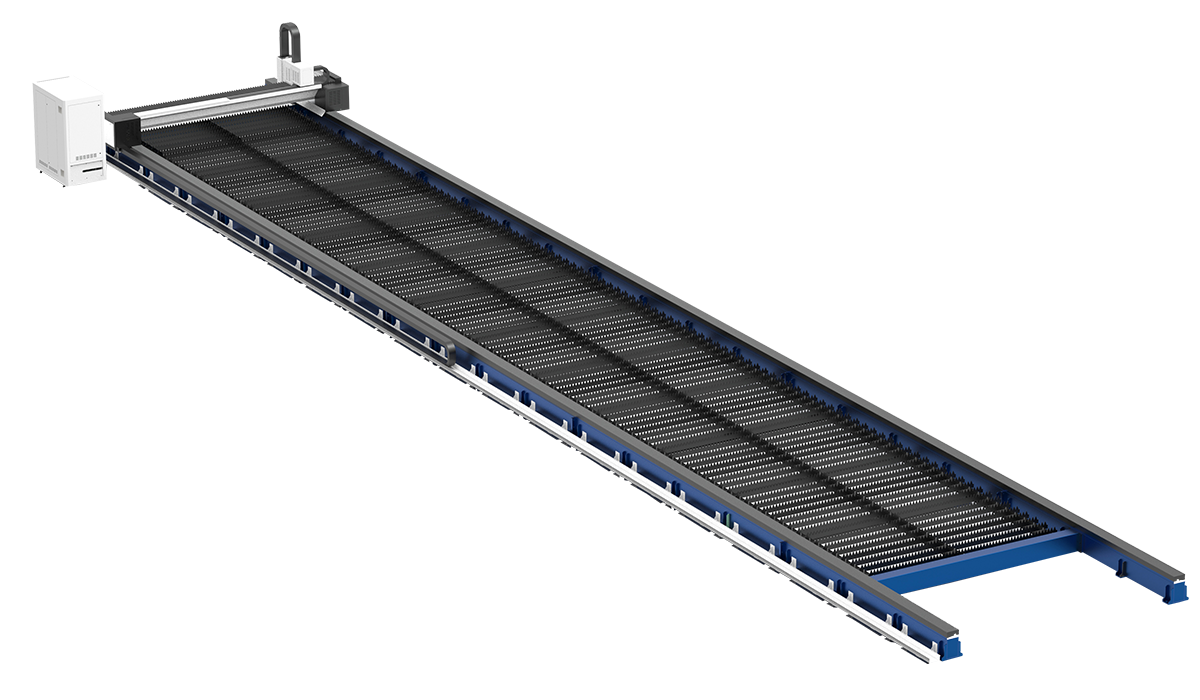

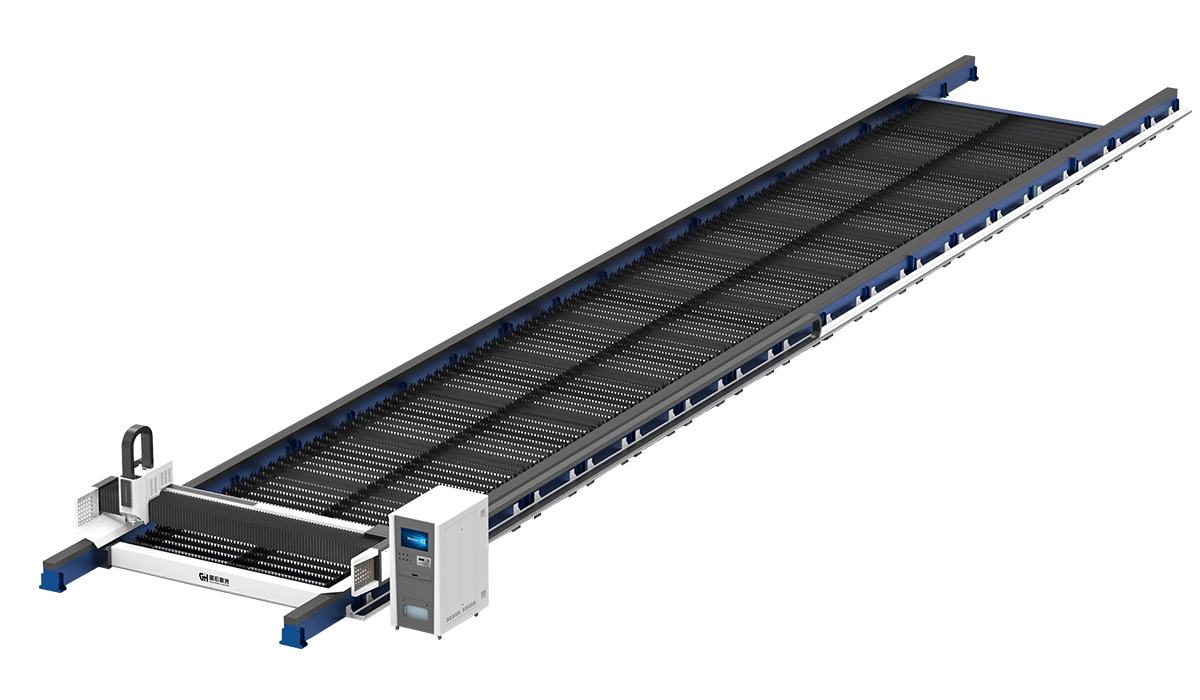

GH-H Series Ground Rail Fiber Laser Cutting Machines

GH-H Series

Ground rail laser cutting machines

1. The machine adopts a ground rail-type segmented bed, and the load is separated to ensure cutting accuracy. The processing formats of different lengths can be customized according to needs, and can cut over-long and over-large materials of special sizes.

2. The machine adopts a segmented ventilation and smoke exhaust device, with one air outlet on each side of the meter, and the automatic and precise smoke exhaust is environmentally friendly and safe. It opens correspondingly with the movement of the cross beam. There are two air extraction interfaces at the end of the equipment, which have good air extraction effect.

3. The machine has an ultra-large-format workbench that can customize processing formats of different lengths according to needs. It can cut over-long and over-large special-sized materials to achieve overall processing of over-long workpieces; transportation and installation are less affected by space limitations.

Inquiry 

Product Introduction

The ground rail fiber laser cutting machines adopts a segmented modular platform, which can meet customers' laser processing needs for ultra-large-format panels and can well guarantee cutting accuracy. It is widely used in: large-scale steel trade, equipment matching, Engineering machinery, mining machinery, special vehicle manufacturing, shipbuilding, wind turbine manufacturing, power towers, steel formwork, container and tank manufacturing, steel structure engineering and other industries.

Custom sizes and extra large cutting widths available

Cutting area can be selected from 14m and 20m, Cutting lengths can be customized according to requirements，Stable cutting of medium-thick sheet mental over 20mm in long time batch

Segmented Splicing Machine Bed.png

Segmented Splicing Machine Bed

The machine adopts a ground rail-type segmented bed, and the load is separated to ensure cutting accuracy. The processing formats of different lengths can be customized according to needs, and can cut over-long and over-large materials of special sizes.

Aluminum Beam

The beam adopts the aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc. In the meantime, it has high flexibility which allow the cutting machine can achieve various shape high speed metal cutting under the condition of satisfying precision.

Aluminum Beam

Technical Parameters

Model	GH-H6025	GH-H12015	GH-H12020	GH-H12025	GH-H12030
Working Area	6000*2500mm	12000*1500mm	12000*2000mm	12000*2500mm	12000*3000mm
Laser Power	8000w-60000w
Accuracy Of Positioning	±0.03mm
Repeat Repositioning Accuracy	±0.02mm
