GH-HP Series: Premier Fiber Laser Cutting Machines with Advanced Features

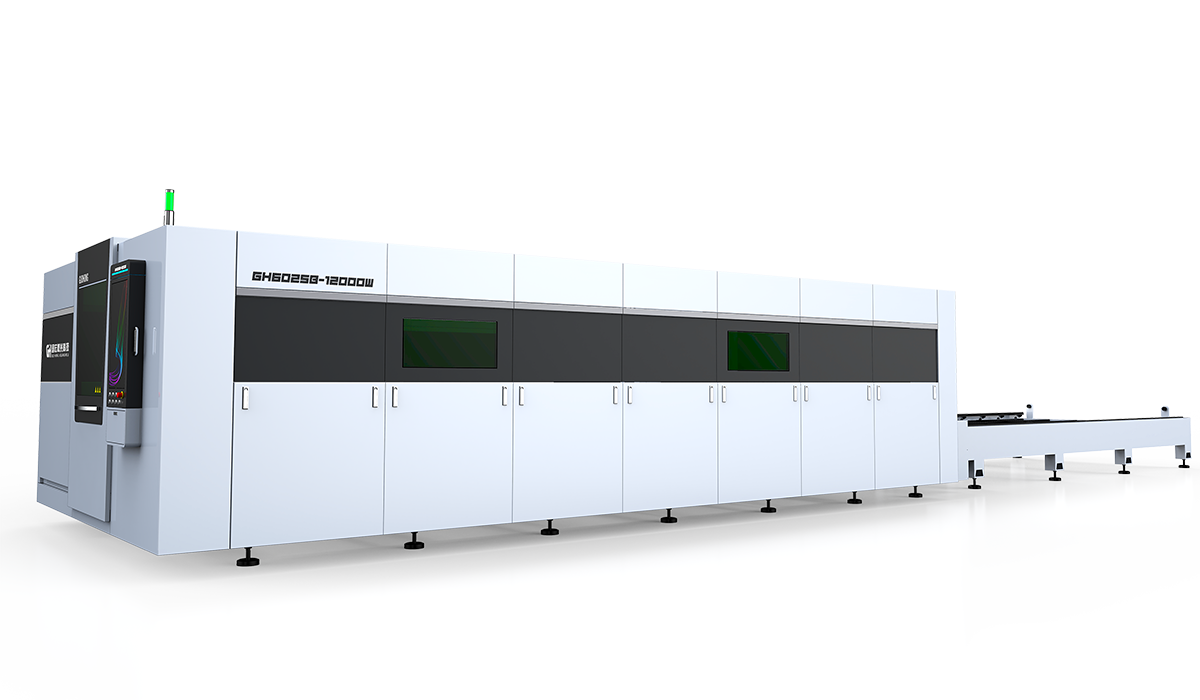

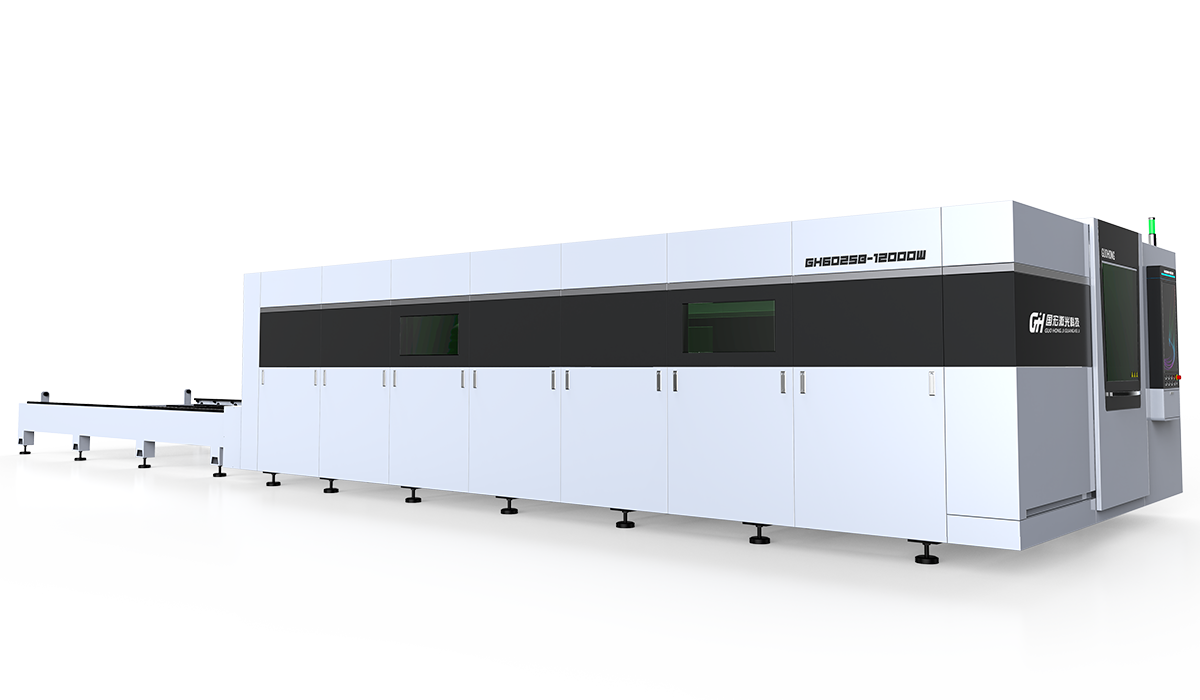

GH-HP Series

High Power Laser Cutting Machine

1.Fully-protective structure

2.Intelligent bus-based CNC system

3.Compliant with EU and ISO standard certification, the weight of the bed can reach 10 tons, which makes the machine more stable when operating at high speed.

4.Adopting new fire-resistant and heat-insulating technology

Improves machine body lifespan and ensures cutting precision

5.Intelligent negative-pressure dust removal

Inquiry 

Product Introduction

The GH-HP series is one of the best-selling fiber laser cutting machines currently.

It is mainly designed for ultra-high power laser cutting.It adopts a totally enclosed protective cover, professional numerical control cutting system, top-level imported parts and strict assembly process, ensuring the safe, stable, efficient and high-precision operation of the cutter.We use many special designs to ensure that the machine can be used for a long time.

Full Protection Cover

The whole machine is fully protected and closed design, safe and environmentally friendly, no pollution, in line with ergonomics and international standards

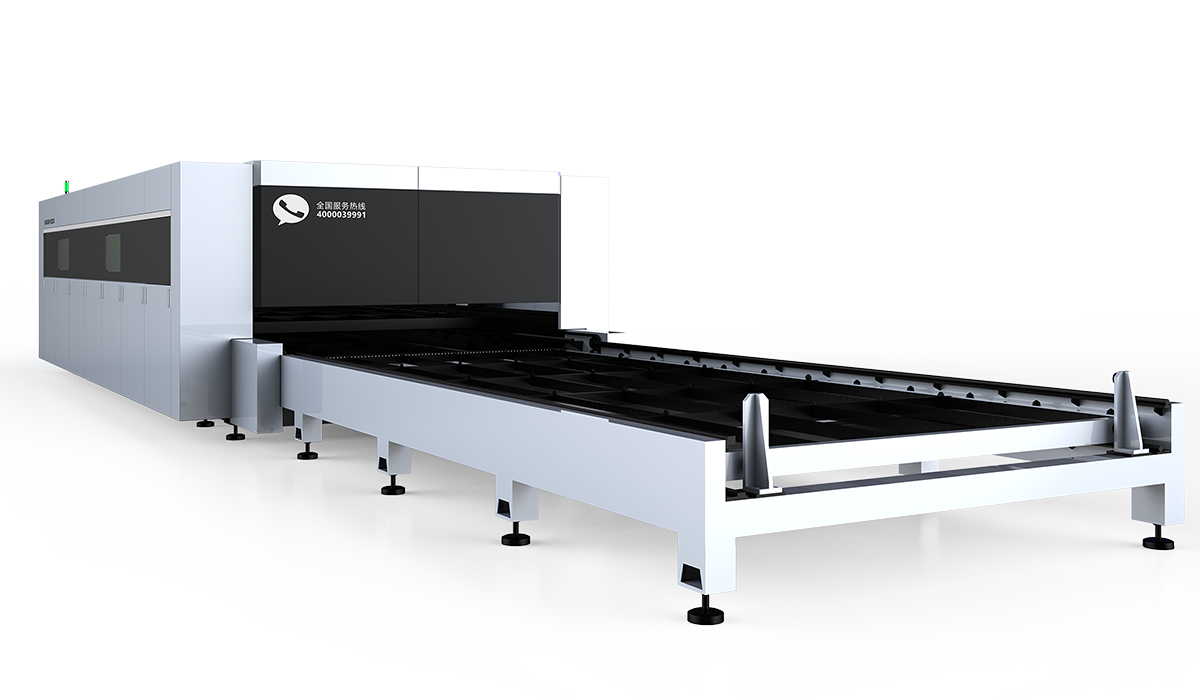

The newest exchange worktable

Simple and reliable structure, high efficiency, good stability, dual platforms can further improve production efficiency.

Heavy plate welding bed

The bed is welded in sections with Ordinary carbon structural steel. After welding, it is machined after stress relief annealing, and then subjected to vibration aging, so that the stress of welding and machining can be completely eliminated, ensuring excellent rigidity, high strength and high precision of the machine bed; when running at high speed, the vibration is suppressed to low level and the cutting precision is high, which ensures the good stability of the laser cutting machine.

Welded Machine Bed

Aluminum Beam

The beam adopts the aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc. In the meantime, it has high flexibility which allow the cutting machine can achieve various shape high speed metal cutting under the condition of satisfying precision.

Laser Cutting Head

The intelligent laser cutting head developed for high power has higher cutting efficiency and better cutting effect.

◆ Co-edge Piercing Monitoring

Improve Cutting Efficiency,Detect whether piercing is required at co-edged positions.

◆ Smart Piercin

Enhance Piercing Efficiency ,Monitor the piercing and cut immediately after piercing to improve the efficiency and reduce costs.

Laser Cutting Head

Technical Parameters

Model	GH-HP 4020	GH-HP 6020	GH-HP 6025	GH-HP 6030	GH-HP 8025
Working Area	4000*2000mm	6000*2000mm	6000*2500mm	6000*3000mm	8000*2500mm
Laser Power	8000w-60000w
Accuracy Of Positioning	±0.03mm
Repeat Repositioning Accuracy	±0.02mm
