GH-P Series
Protective Cover Exchange Platform Laser Cutting Machine

Precision & Speed: Micro precision, lightning speed.

Exchange platform: Zero loading time waste

Operator Safety: Protective enclosure prevents laser injuries

Versatility: Cuts various materials effortlessly.

Efficient Dust Extraction: High-efficiency system to quickly remove dust and smoke.

Automation & Flexibility: Highly automated, flexible integration.

Low Environmental Impact: Eco-friendly, minimal waste.

Highly Automated: Streamlined, efficient production.

Digital Precision Control: Precise cuts, computer-controlled.

Future of Manufacturing: Advanced laser technology.

  • GH-P Series
  • GH-P Series
  • GH-P Series
  • GH-P Series

Product Introduction

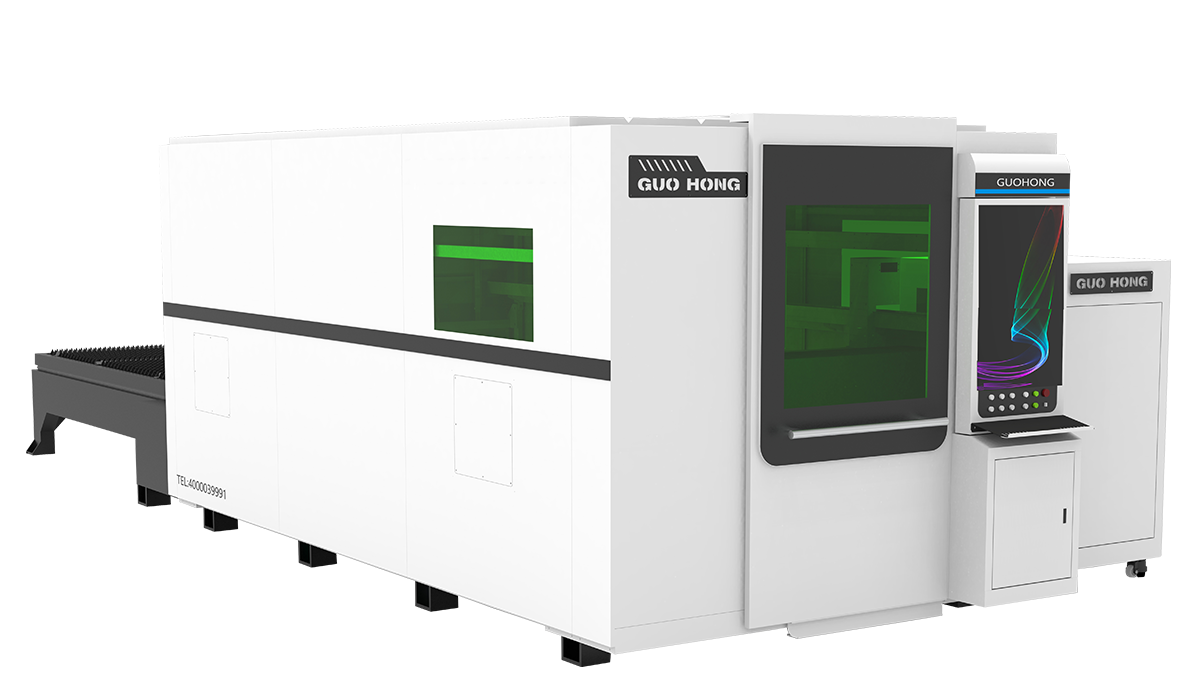

The GH-P series laser cutting machine is a high-precision fiber laser cutter independently developed and designed by Guohong Laser. The equipment includes a fast-exchange worktable and a protective enclosure, ensuring extremely high laser cutting efficiency and saving loading and unloading time. The protective enclosure ensures the safety of your workers by preventing laser injuries during machine operation. Additionally, the equipment is equipped with an efficient dust and smoke exhaust system to quickly remove particulates. The GH-P series, with its outstanding appearance and flexible efficiency, assists you in completing the cutting and processing of various metal sheets.

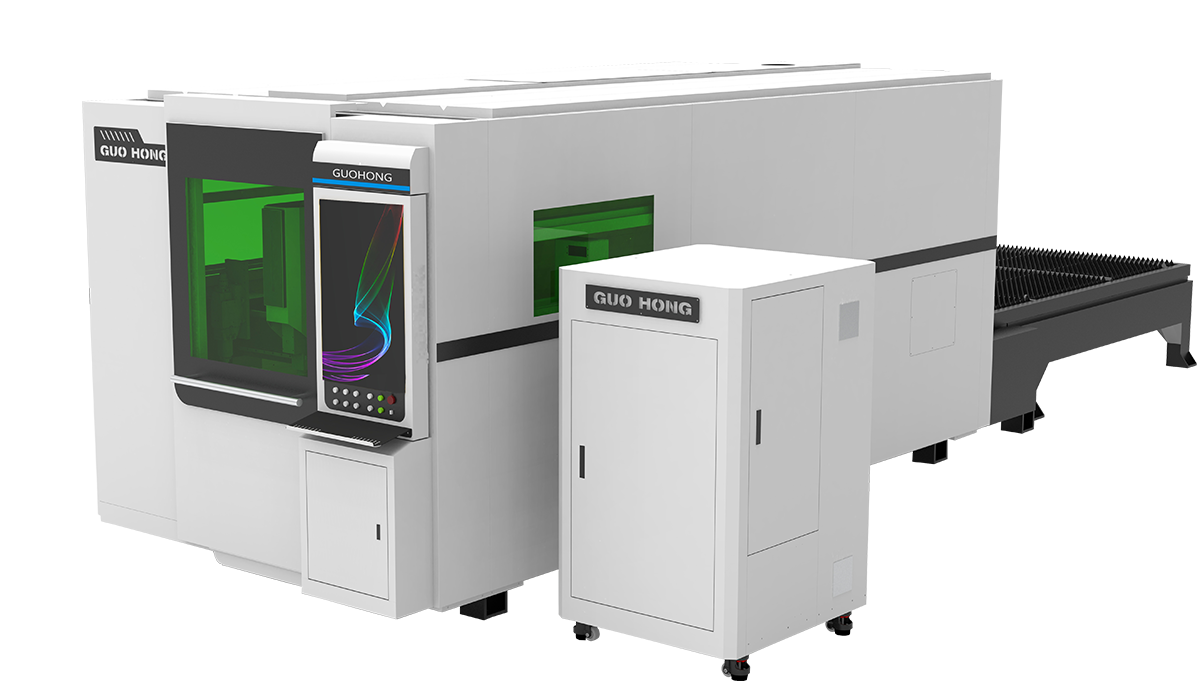

Full Protection Cover


The whole machine is fully protected and closed design, safe and environmentally friendly, no pollution, in line with ergonomics and international standards

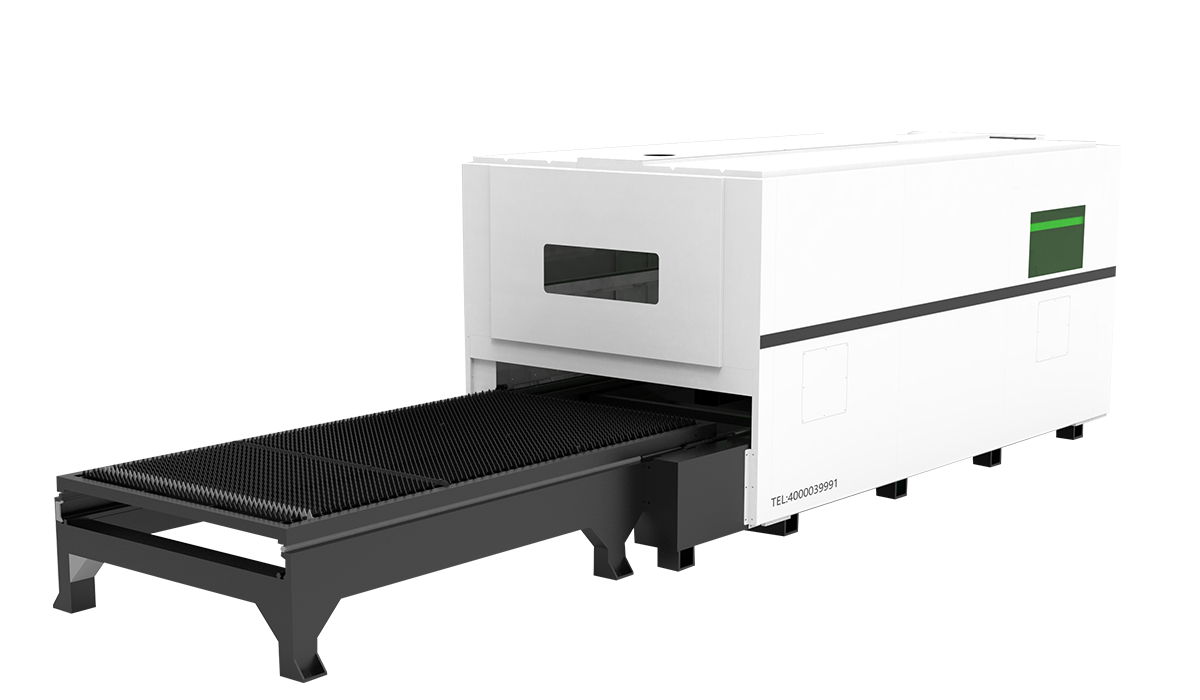

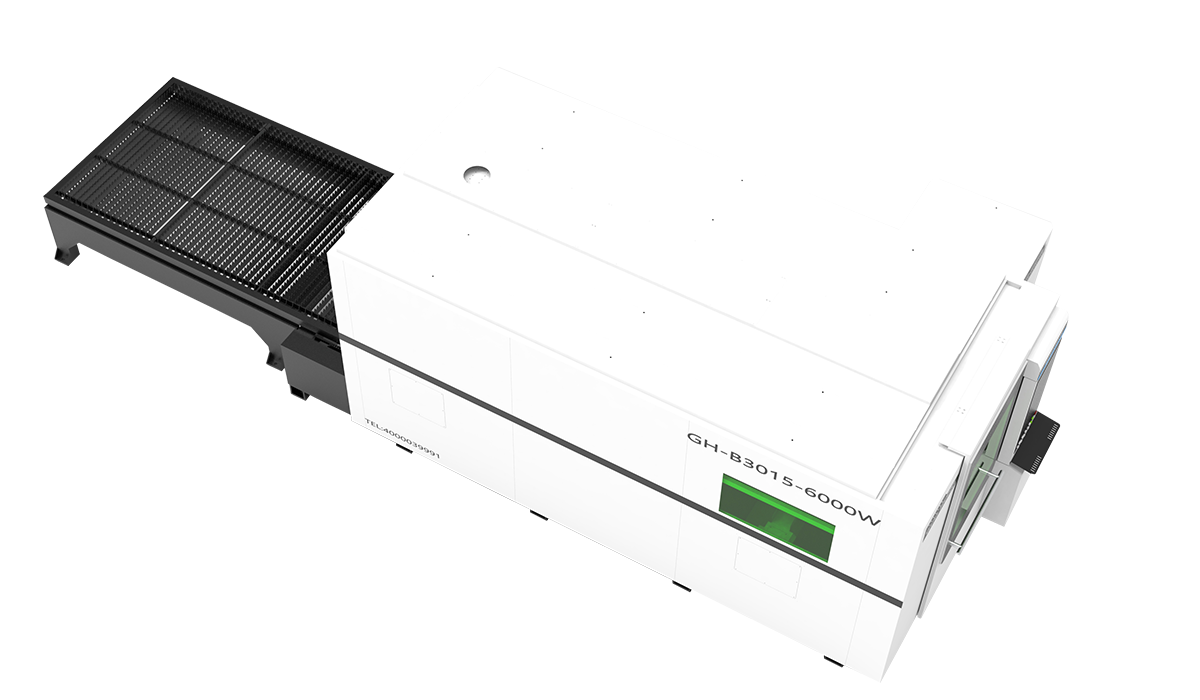

The newest exchange worktable


The newest exchange worktable


Simple and reliable structure, high efficiency, good stability, dual platforms can further improve production efficiency.

Welded Machine Bed


The bed is welded in sections with Ordinary carbon structural steel. After welding, it is machined after stress relief annealing, and then subjected to vibration aging, so that the stress of welding and machining can be completely eliminated, ensuring excellent rigidity, high strength and high precision of the machine bed; when running at high speed, the vibration is suppressed to low level and the cutting precision is high, which ensures the good stability of the laser cutting machine.

Welded Machine Bed

Aluminum Beam

Aluminum Beam


The beam adopts the aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc. In the meantime, it has high flexibility which allow the cutting machine can achieve various shape high speed metal cutting under the condition of satisfying precision.

Laser Cutting Head


The auto-focus laser cutting head can automatically adjust the focal length, which makes the operation simple, convenient, fast and accurate. Also shorten the piercing time, improve piercing quality, high-speed cutting to save time.

Laser Cutting Head

Technical Parameters

GH-P series
ModelGH-P3015GH-P4015GH-P4020GH-P6020GH-P6025
Working Area3000*1500mm4000*1500 mm4000*2000 mm6000*2000 mm4000*1500 mm
Laser Power1000-120000W
Positioning accuracy±0.03 mm
Repetitive Positioning Accuracy±0.02mm

The metal sheet cutting size can be customized according to your requirement, if you have more requirement or need the custom laser cutting machine, please feel free to contact.
