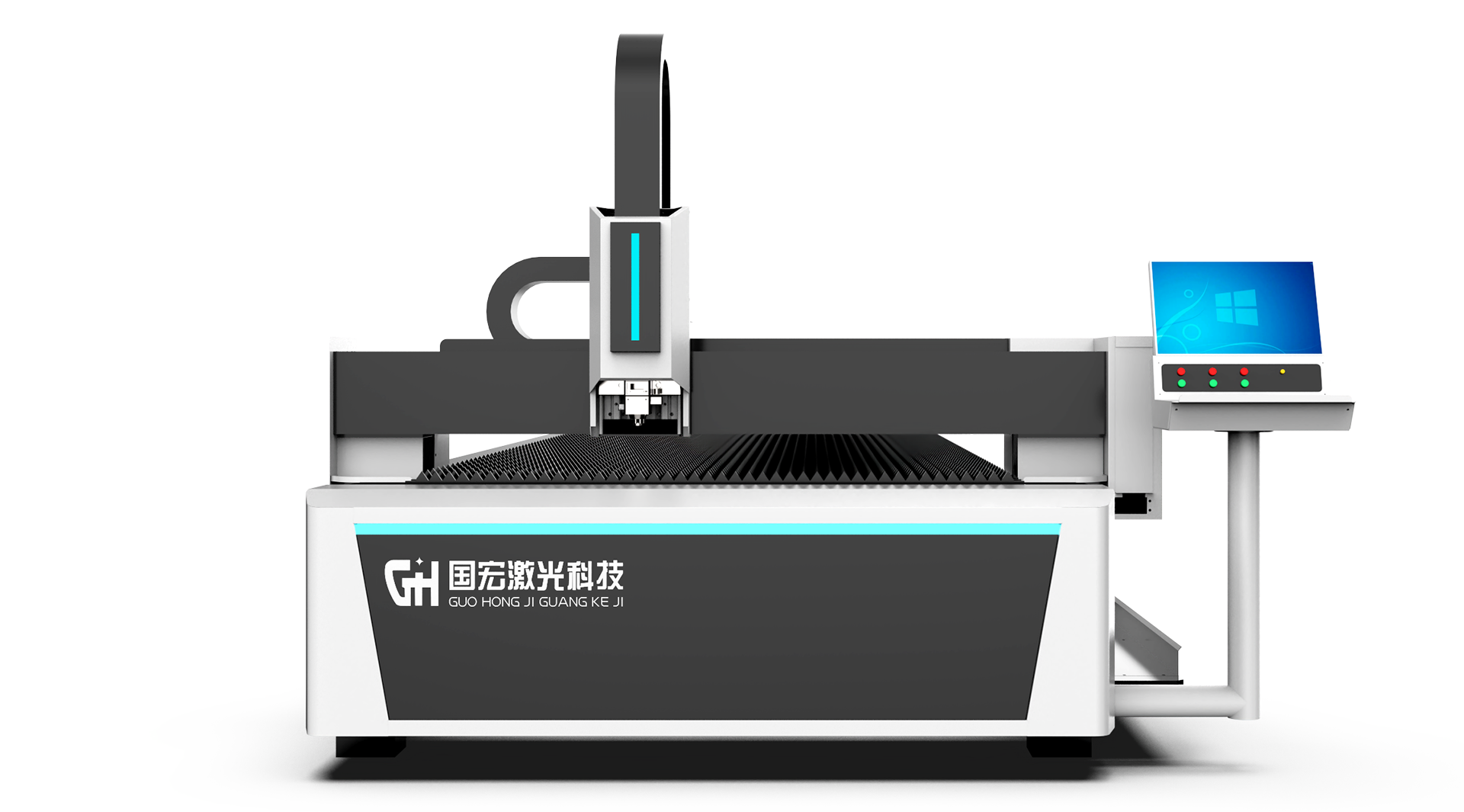

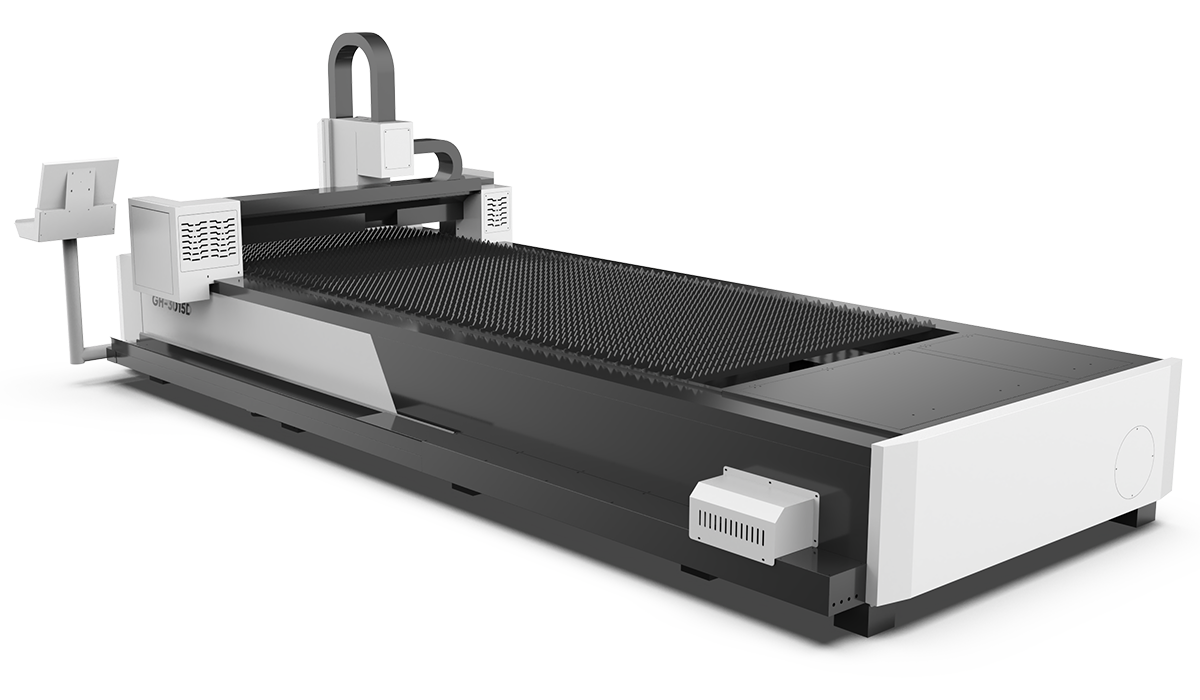

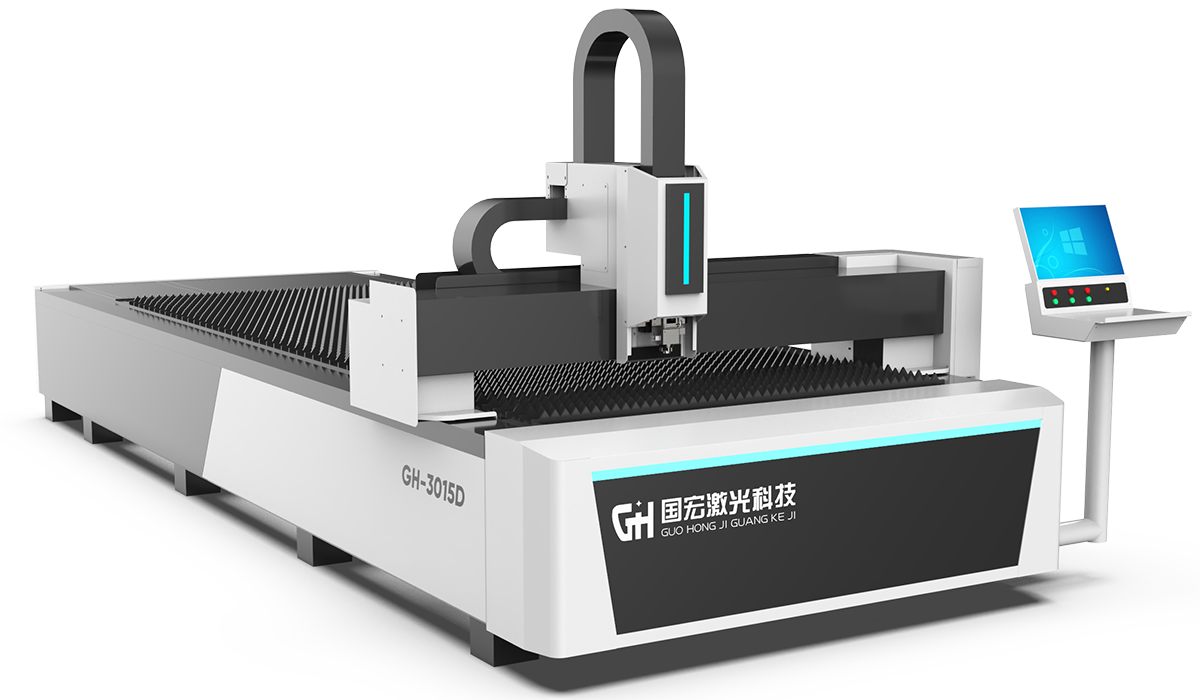

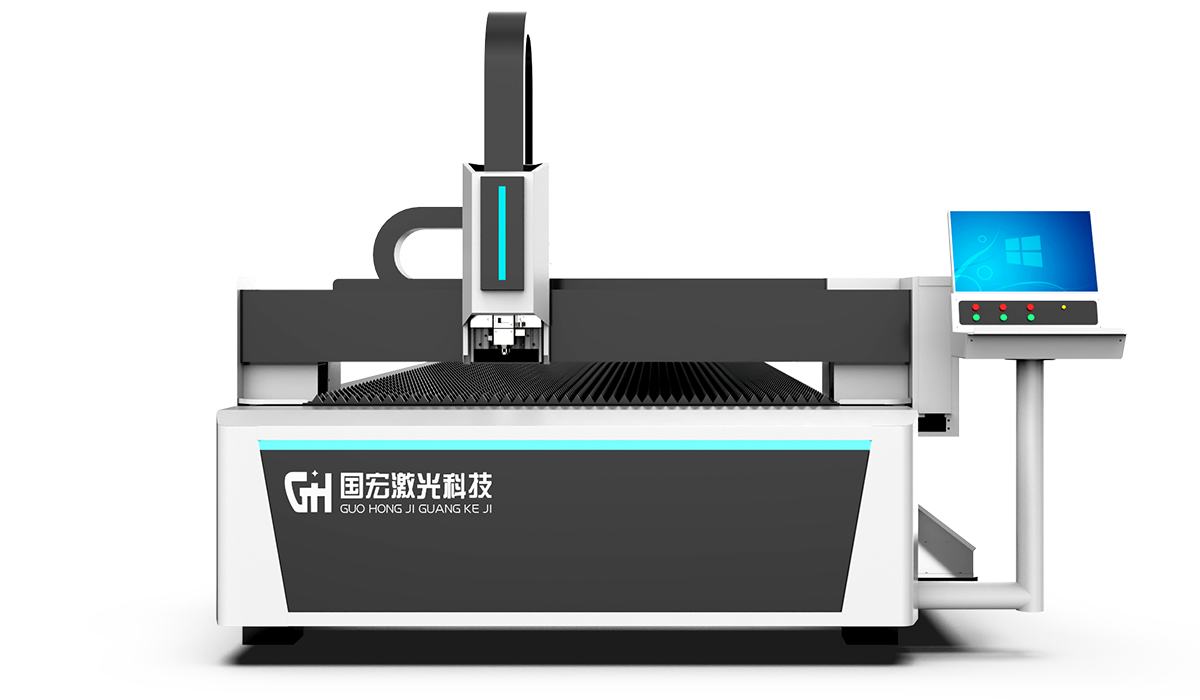

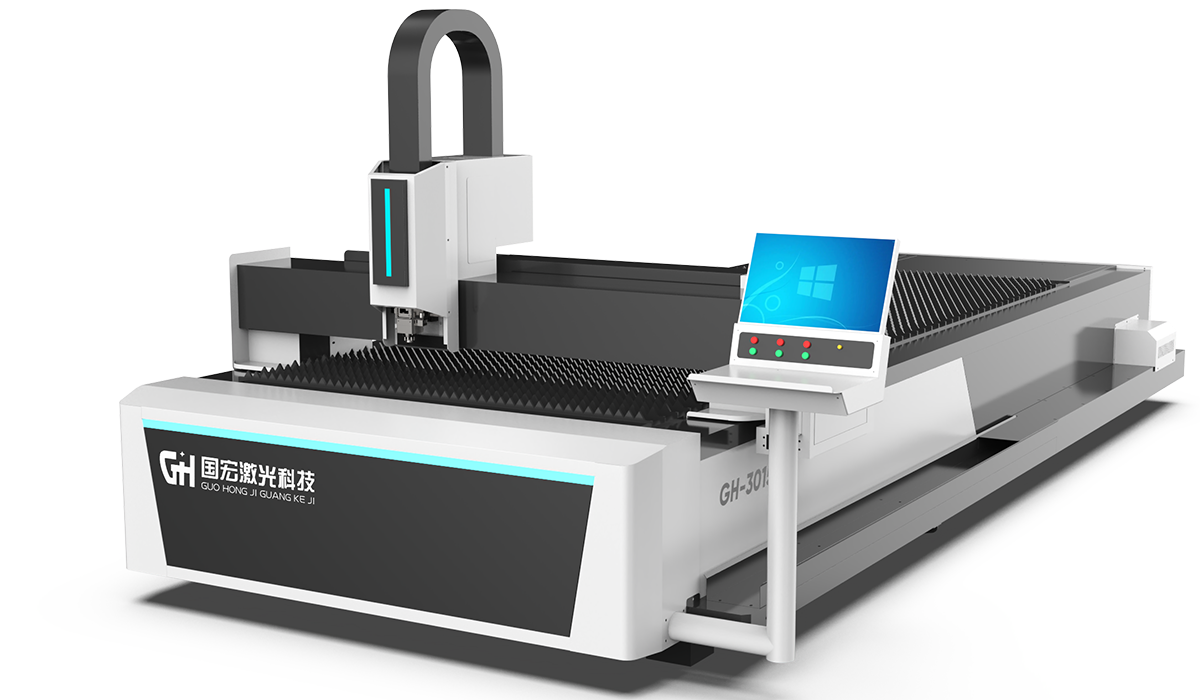

GH-F Series

Sheet Metal Laser Cutting Machine

1.Professional laser cutting system, simple and convenient to operate, easy to learn and use, and easy to maintain.

2.Taiwan HIWIN Guide Slide, Delixi Electric Appliances.

3.Famous brand RAYCUS fiber laser, optional TAG/RAYTOOLS/WSX cutting head.

4.Adopting imported guide transmission mechanism and servo motor, with high cutting accuracy.

Product Introduction

GH-F series fiber laser cutting machine is a single-platform sheet metal laser cutting machine independently developed by our company. This laser cutting machine is equipped with an international mainstream transmission drive system, new generation of welding machine bed and aluminum beams, new designed air circuit control module, new optimized control system and etc., The laser cutting machine is equipped with a new advanced fiber laser and laser cutting head, with superior comprehensive performance. This fiber laser cutting machine is intelligent, efficient and operation friendly. The machine has the advantages of high cutting speed, good cutting effect, low operating cost, diverse processing, and stable performance.

Welded Machine Bed

The bed is welded in sections with Ordinary carbon structural steel. After welding, it is machined after stress relief annealing, and then subjected to vibration aging, so that the stress of welding and machining can be completely eliminated, ensuring excellent rigidity, high strength and high precision of the machine bed; when running at high speed, the vibration is suppressed to low level and the cutting precision is high, which ensures the good stability of the laser cutting machine.

Welded Machine Bed

Aluminum Beam

The beam adopts the aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc. In the meantime, it has high flexibility which allow the cutting machine can achieve various shape high speed metal cutting under the condition of satisfying precision.

Laser Cutting Head

The auto-focus laser cutting head can automatically adjust the focal length, which makes the operation simple, convenient, fast and accurate. Also shorten the piercing time, improve piercing quality, high-speed cutting to save time.

Laser Cutting Head

Key Transmission Components

Key transmission components adopt most advanced imported configuration, High stability and reliability, excellent actual running accuracy，guarantee our machinery has the best transmission performance. Please check the equipment specification datasheet for details configuration.

Key Transmission Components.png

Technical Parameters

Mode	GH-F3015	GH-F4015	GH-F4020	GH-F6015	GH-F6020	GH-F6025
Working Area	3000*1500mm	4000*1500mm	4000*2000mm	6000*1500mm	6000*2000mm	6000*2500mm
Laser Power	1000-120000W
Positioning accuracy	±0.03 mm
Repetitive positioning accuracy	±0.02mm
