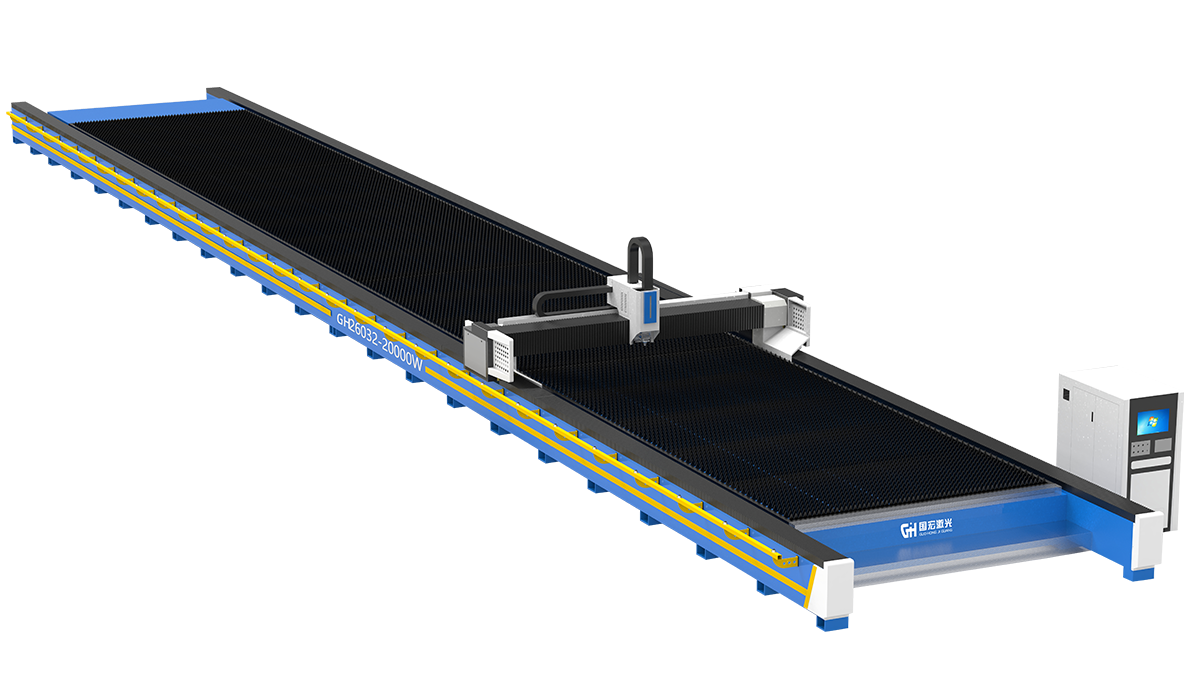

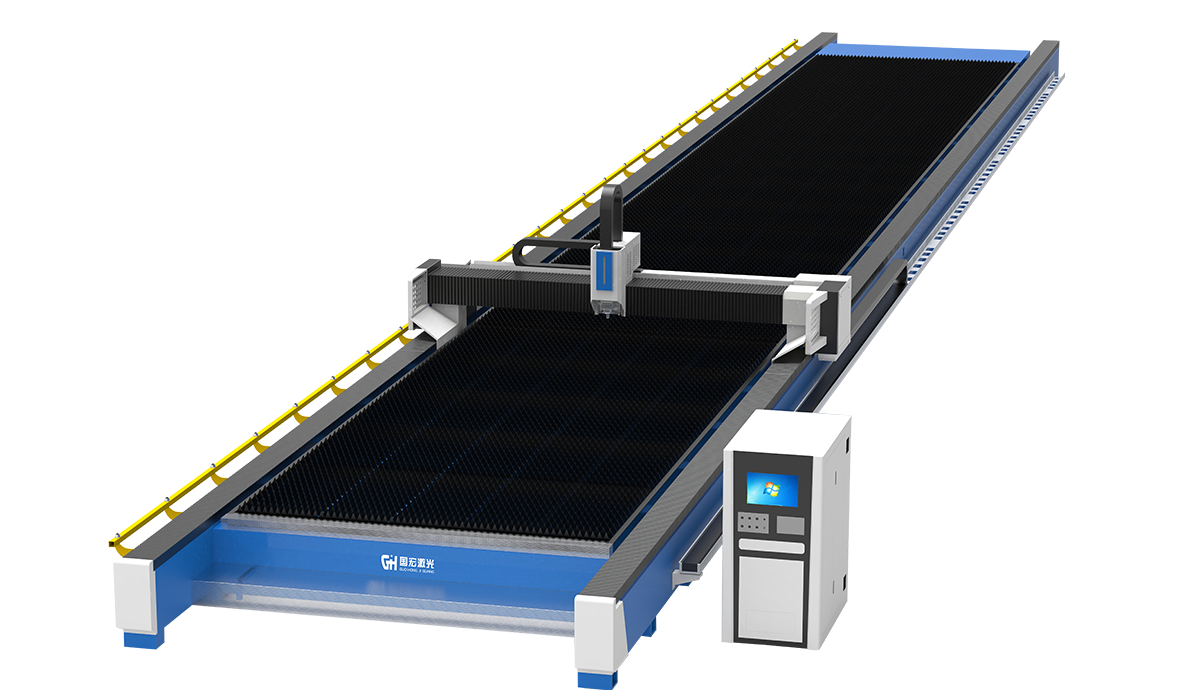

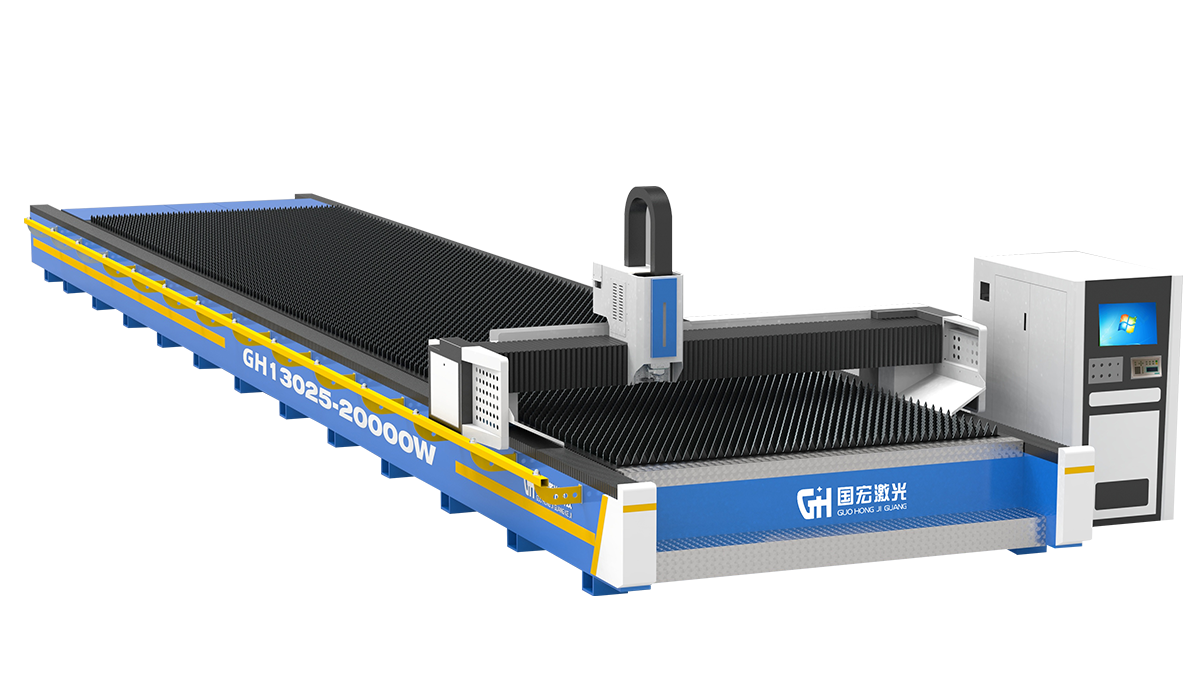

GH-J Series: Oversized, High-Strength Laser Cutting Machines for Large-Format Processing

GH-J Series

Super Large Format Laser Cutting Machine

1.Oversized processing format

The maximum processing format can reach 2500mm*12000mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.

2.High-strength split plate welding bed

Optimize the transportation plan so that it can be loaded into the general container of 20’GP and 40’HQ. Reduce the transportation cost, and the transportation cost is only 1/3 of the frame container transportation.

3.Split frame support table

Reduce the load of the bed structure, decrease the impact of material rushing on the bed structure, ensure the accuracy of the machine, and improve the loading weight of the table.

4.Subdivided Fluid Domain Dusting

The smoke exhaust device automatically senses the laser cutting position to open precise smoke exhaust, closes the non-cutting area for smoke exhaust, fully enclosed smoke control, increases suction, and removes smoke to the greatest extent.

5.Replaceable Independent burn-proof sheet metal

Reduce the erosion of slag injection on the bed and improve the life of the bed.

Inquiry 

Product Introduction

Large-area fiber laser cutting machines use a modular design, quickly expand metal cutting regions, and reduce transportation costs. It can realize the timely processing of various graphics and characters and is user-friendly and straightforward. Customized formats are supported.The maximum processing format can reach 2500mm*12000mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.

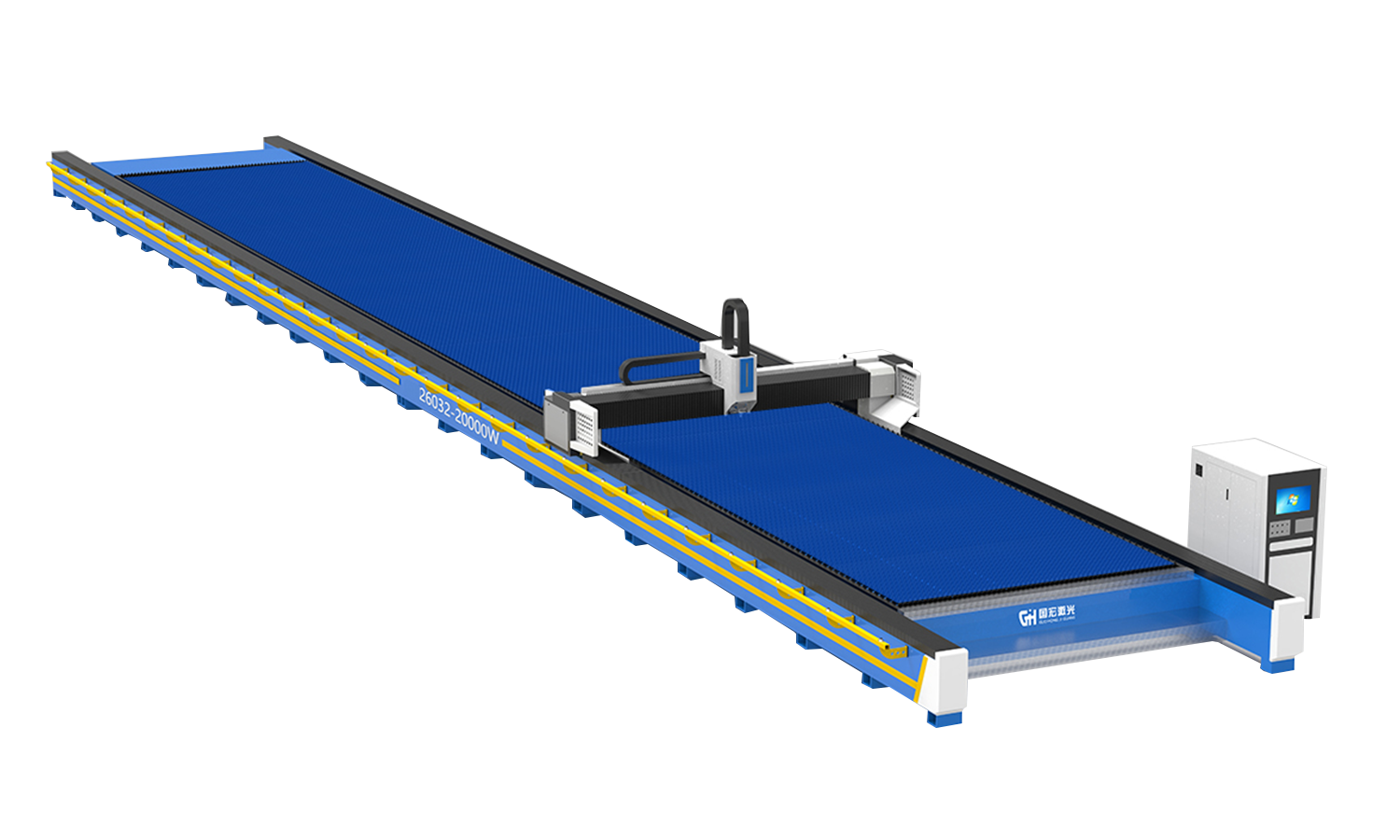

Custom sizes and extra large cutting widths available

Cutting area can be selected from 14m and 20m, Cutting lengths can be customized according to requirements，Stable cutting of medium-thick sheet mental over 20mm in long time batch

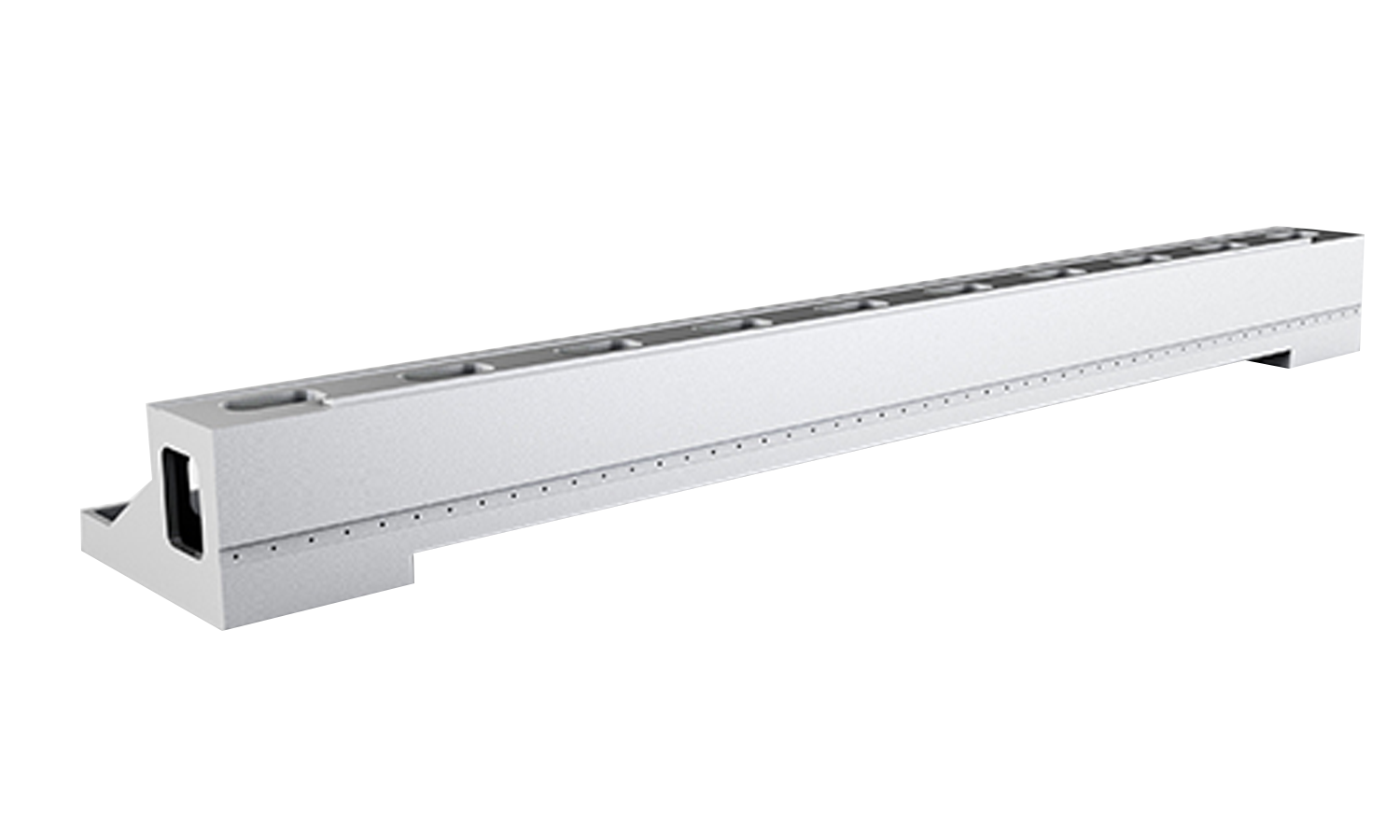

Aluminum Beam

The beam adopts the aluminum beam, after artificial aging and solution hardening process, the beam has high stiffness, fine surface quality, and high integrity, etc. In the meantime, it has high flexibility which allow the cutting machine can achieve various shape high speed metal cutting under the condition of satisfying precision.

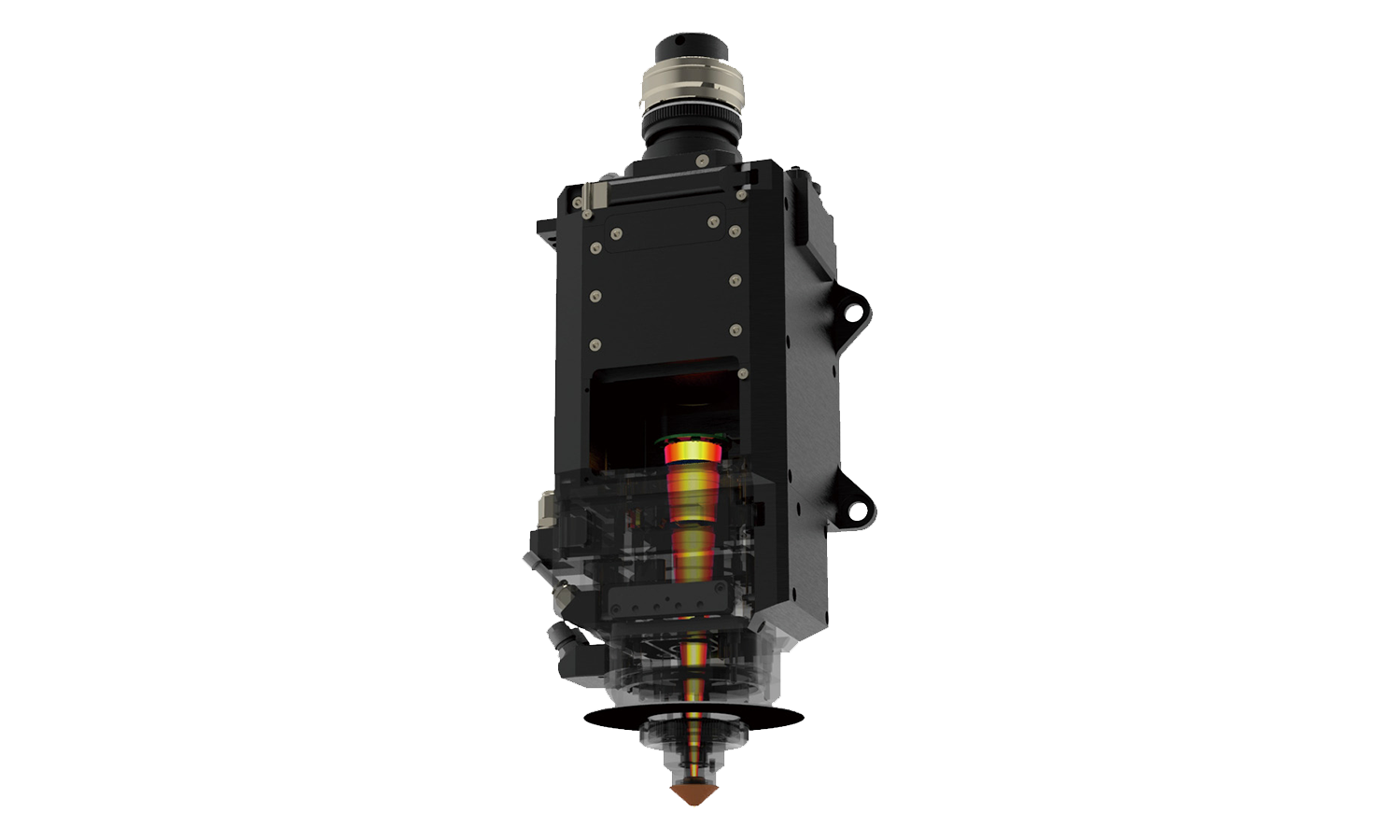

Laser Cutting Head

The intelligent laser cutting head developed for high power has higher cutting efficiency and better cutting effect.

◆ Co-edge Piercing Monitoring

Improve Cutting Efficiency,Detect whether piercing is required at co-edged positions.

◆ Smart Piercin

Enhance Piercing Efficiency ,Monitor the piercing and cut immediately after piercing to improve the efficiency and reduce costs.

Laser Cutting Head

Technical Parameters

Model	GH-J6025	GH-J12015	GH-J12020	GH-J12025	GH-J12030
Working Area	6000*2500mm	12000*1500mm	12000*2000mm	12000*2500mm	12000*3000mm
Laser Power	6000w-60000w
Accuracy Of Positioning	±0.03mm
Repeat Repositioning Accuracy	±0.02mm
